Quad Sundown Audio LCS 12" SUV / Hatchback Ported Subwoofer Box Plans
Subwoofer Box Plans for (4) Sundown Audio LCS 12" – Ported Enclosure
Build a clean, punchy, hard‑hitting ported enclosure for four Sundown Audio LCS 12" subwoofers with these precision‑engineered SUV/Hatchback‑optimized subwoofer box plans. Designed for strong low‑end extension, excellent cabin gain, and efficient airflow, this enclosure brings out the best performance from Sundown’s LCS series — loud, musical, and surprisingly deep for an entry‑level driver.
Save Money — Build It Yourself
Stop wasting materials and guessing on dimensions. These DIY subwoofer box plans make it simple to build a professional‑grade enclosure at home, perfect for anyone wanting big bass without paying custom‑shop prices.
What’s Included
- Downloadable ZIP file

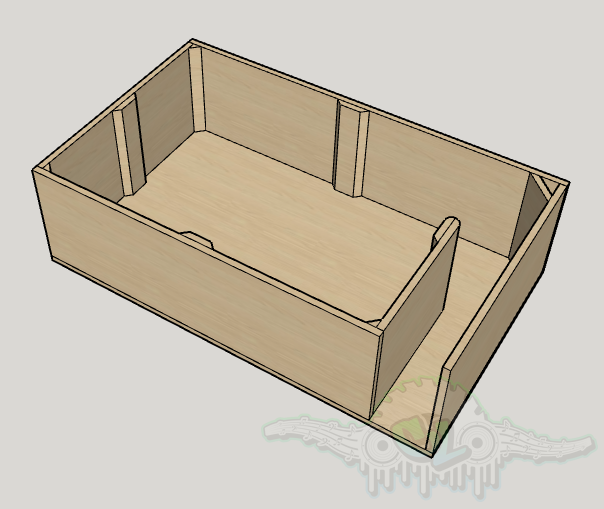

- Multiple 3D rendering images
- Detailed spec sheet with subwoofer & enclosure specs
- Professional optimized cut sheet with parts list
- Precision‑designed ported enclosure layout
Designed For
Quad Sundown Audio LCS 12" Subwoofers – SUV/Hatchback Application
- Woofer Type: (4) Sundown Audio LCS 12
- Woofer Size: 12"
- Outside Dimensions: 47"W × 15"H × 28"D
- Tuning: Manufacturer‑optimized ported design
- Performance Notes: Engineered for strong low‑frequency depth, clean daily performance, and excellent cabin gain in SUV/Hatchback vehicles
May work for other 12" woofers — user discretion advised.
Why These Plans Perform
- Optimized specifically for four Sundown LCS 12" subs
- Designed for tight, punchy bass with impressive low‑end depth
- SUV/Hatchback‑tuned for maximum cabin gain and efficiency
- Smooth, predictable response thanks to proper port tuning
- Ideal for daily setups needing clean, musical performance
- Eliminates trial‑and‑error and prevents wasted materials
