Quad American Bass HD 10" SUV / Hatchback Ported Subwoofer Box Plans
Subwoofer Box Plans for (4) American Bass HD 10" – Ported Enclosure
Build a brutally powerful, hard‑hitting ported enclosure for four American Bass HD 10" subwoofers with these precision‑engineered SUV/Hatchback‑optimized subwoofer box plans. Designed for extreme output, deep low‑end extension, and aggressive cabin gain, this enclosure unleashes the full potential of the legendary HD series.
Save Money — Build It Yourself
Stop wasting materials and guessing on dimensions. These DIY subwoofer box plans make it simple to build a professional‑grade enclosure at home, perfect for anyone wanting massive bass without paying custom‑shop prices.
What’s Included
- Downloadable ZIP file

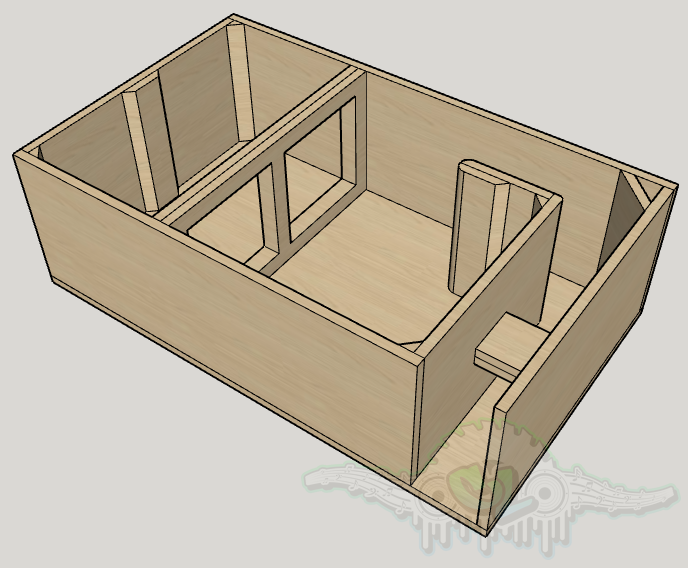

- Multiple 3D rendering images
- Detailed spec sheet with subwoofer & enclosure specs
- Professional optimized cut sheet with parts list
- Precision‑designed ported enclosure layout
Designed For
Quad American Bass HD 10" Subwoofers – SUV/Hatchback Application
- Woofer Type: (4) American Bass HD 10
- Woofer Size: 10"
- Outside Dimensions: 40"W × 15"H × 24"D
- Tuning: 33Hz
- Performance Notes: Engineered for extreme output, strong low‑end authority, and aggressive cabin gain while maintaining clean, controlled bass
May work for other 10" woofers — user discretion advised.
Why These Plans Perform
- Optimized specifically for four American Bass HD 10" subs
- Designed for maximum output with deep, authoritative low‑frequency extension
- SUV/Hatchback‑tuned for exceptional cabin gain and efficiency
- Smooth, predictable response thanks to proper port tuning
- Ideal for daily setups, demo builds, and high‑output street systems
- Eliminates trial‑and‑error and prevents wasted materials
