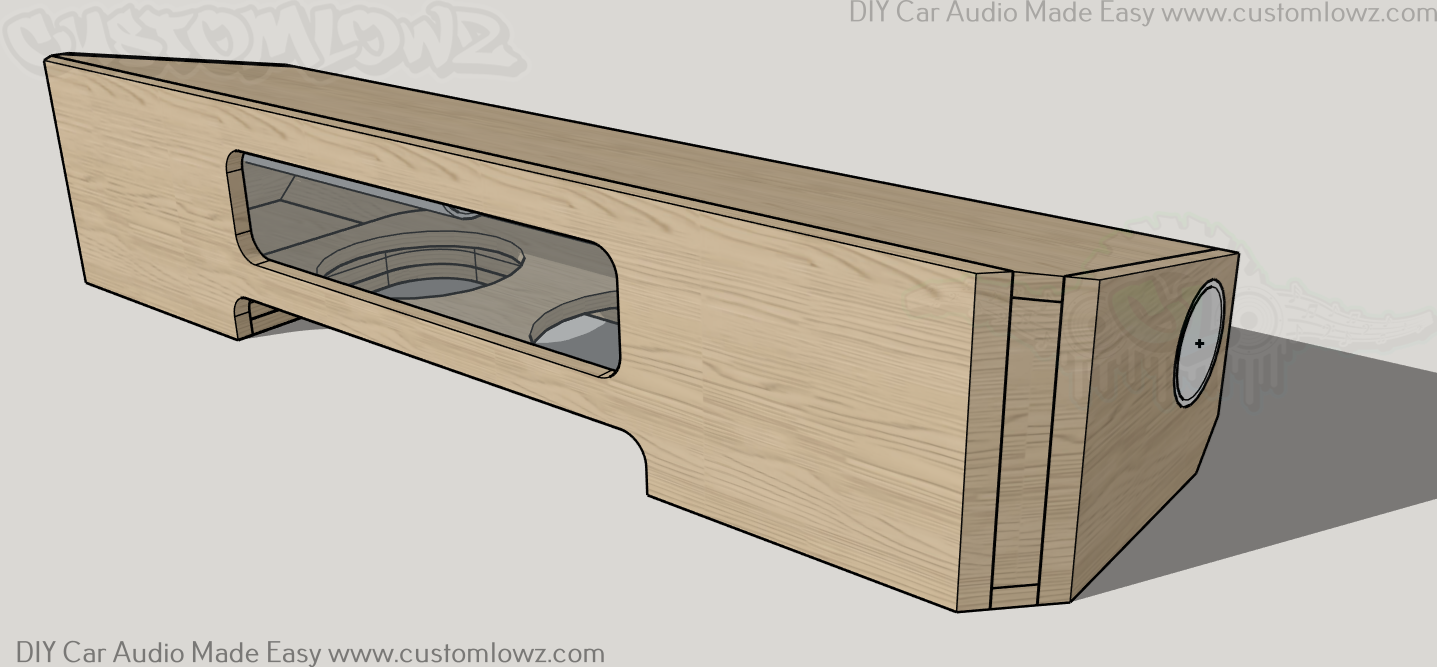

2009–2025 Ford F150 Crew Dual AudioControl Space Series 10 Subwoofer Box Plans
Subwoofer Box Plans for (2) Audio Control Space Series 10" – Ported Truck Enclosure
Build a clean, hard‑hitting ported enclosure for two Audio Control Space Series 10" subwoofers with these precision‑engineered subwoofer box plans designed specifically for the 2008–2025 Ford F150 Crew Cab. This enclosure maximizes under‑seat airspace, airflow efficiency, and low‑end extension while maintaining full rear‑seat functionality.
The Space Series 10 thrives in a properly tuned ported enclosure, and this design provides the ideal airspace, port area, and tuning frequency needed to deliver tight, musical, and surprisingly deep bass inside the F150 cabin.
Save Money — Build It Yourself
Stop wasting materials and guessing on dimensions. These DIY subwoofer box plans make it simple to build a professional‑grade enclosure at home — perfect for anyone wanting big, clean bass without paying custom‑shop prices.
What’s Included
- Downloadable ZIP file
- Multiple 3D rendering images
- Detailed spec sheet with subwoofer & enclosure specs
- Professional optimized cut sheet with parts list
- Precision‑designed ported truck enclosure layout
Designed For
Dual AudioControl Space Series 10" Subwoofers – 2009–2025 Ford F150 Crew Cab
- Woofer Type: (2) AudioControl Space Series 10
- Woofer Size: 10"
- Outside Dimensions: 11”FH x 8”RH x 54”W x 14.75”D
- Requires 2.5" Seat Lift
- Tuning: 36Hz truck‑optimized ported design
- Performance Notes: Engineered for tight, punchy bass with strong low‑end extension and excellent in‑cabin efficiency
May work for other 10" woofers — user discretion advised.
Why These Plans Perform
- Optimized specifically for dual AudioControl Space Series 10s
- Designed to fit 2009–2025 Ford F150 Crew Cab with proper seat lift
- Ported layout maximizes airflow and reduces turbulence
- Smooth, predictable response thanks to proper port tuning
- Ideal for daily setups needing clean, musical, and powerful bass
- Eliminates trial‑and‑error and prevents wasted materials
